G-Filler8000 Series Thermal Interface material -Gap Filler Pad
General Usage:

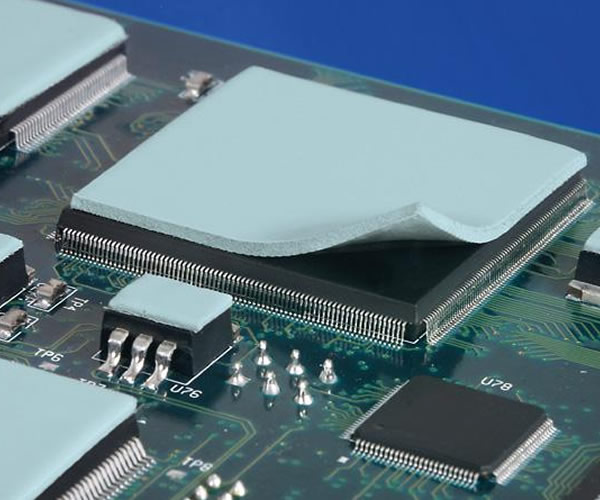

G-Filler8000 Series is an exceptionally soft, highly compressible gap filling interface pad with a thermal conductivity of 5.0
W/m-K. These outstanding properties are the result of a proprietary boron nitride filler in the composition.
The high conductivity, in combination with extreme softness, produces incredibly low thermal resistances. While extremely
soft, G-Filler8000 recovers to over 89% of its original thickness after compression under low pressure.
G-Filler8000 is electrically insulating, stable from -45ºC to 200ºC and meets UL94 HB rating.

Benefit:
- Continuous roll package rubber
- General Thermal conductivity
- Highly compressible
- Good wetting
- Self tacky or additional PSA if required

Typical Applications:
- High Speed Mass Storage Drives
- Cooling components to the chassis or Frame
- Automotive Engine Control Units
- Telecommunication Hardware
- RDRAM Memory Modules

Typical Properties:

T-PAD600R series	Test method	8100	8200	8300	8400	8600	8800	8180
Construction & Composition		Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
Color	Visual	Red	Red	Red	Red	Red	Red	Red
Thickness (mm)		0.25mm	0.50mm	0.76mm	1.00mm	1.5mm	2.00 mm	2.54 mm
Thickness Tolerance (mm)		±10%	±10%	±10%	±10%	±10%	±10%	±10%
Density (g/cc)		2.25	2.25	2.25	2.25	2.25	2.25	2.25
Hardness (Shore A)	ASTM D2240	40	30	30	30	30	30	30
Breakdown Voltage	ASTM D149	3000Vac	>5000Vac	>5000Vac	>5000Vac	>5000Vac	>5000Vac	>5000Vac
Tensile Strength	ASTM D 638	N/A	N/A	18 psi	18 psi	18 psi	18 psi	18 psi
Elongation (%)	ASTM D 412	N/A	N/A	65	65	65	65	65
Outgassing TML *Post Cured(%)	ASTM D 150	0.59	0.59	0.59	0.59	0.59	0.59	0.59
Outgasssing CVCM *Post Cured (%)		0.04	0.04	0.04	0.04	0.04	0.04	0.04
UL Rating	E180840	94 HB	94 HB	94 HB	94 HB	94 HB	94 HB	94 HB
Continuous Use Temp (℃)	TGA+DMA	-40～200	-40～200	-40～200	-40～200	-40～200	-40～200	-40～200
Thermal Conductivity (W/m.k)	ASTM 5470	5	5	5	5	5	5	5

Standard Thicknesses:
0.01"(0.25mm) 0.02"(0.51mm) 0.03"(0.76mm) 0.04"(1.02mm) 0.05"(1.27mm)
0.06"(1.52mm) 0.07"(1.78mm) 0.08"(2.03mm) 0.09"(2.29mm) 0.10"(2.54mm)
0.11"(2.79mm) 0.12"(3.05mm) 0.13"(3.30mm) 0.14"(3.56mm) 0.15"(3.81mm)
0.16"(4.06mm) 0.17"(4.32mm) 0.18"(4.57mm) 0.19"(4.83mm) 0.20"(5.00mm)
Standard Sheet Size: 300x400mm Or 200x400mm
Adhesive Tape : A1--Request adhesive on one side A2--Request adhesive on double side
Reinforcement : Fiberglass is required in all sizes.
